NNU41 800 W33 44827 800K 800*1280*475mm Economical China OEM Factory With Good Feedback Industry Machinery Long Life Low Price
You are here: Home » Products » Cylindrical roller bearing » NNU41 800 W33 44827 800K 800*1280*475mm Economical China OEM Factory With Good Feedback Industry Machinery Long Life Low Price

Product Detail

Share to:

NNU41 800 W33 44827 800K 800*1280*475mm Economical China OEM Factory With Good Feedback Industry Machinery Long Life Low Price

high precision, high load, good performance, factory price
Size: mm:
Material:
Stock:
Whatsapp:
email:
Quantity:
  • NNU41 800 W33 44827 800K 800*1280*475mm
  • HGJX or customization

 Why us?

1. FREE SAMPLES:contact us by email or trade manager, we will send the free sampls according to your request.

2. World Class Bearing:We provide our customers with all types of indigenous bearing with world class quality.

3. OEM or Non Stand Bearings: Any requirements for Non standard bearings is Easily Fulfilled by us due to its vast knowledge and links in the industry.

4. Genuine products With Excellent Quality: Company has always proved the 100% quality products it provides

    with genuine intent.

5. After Sales Service and technical Assistance: Company provides after sales service and technical assistance as per

    the customers requirement and needs.

6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.

7. Cost Saving: We provide long-life,  shock-resistant and high reliability bearings with excellent quality and better performance. Resulting in increased cost saving.

8. Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well.

   Customers are always given quick support.


1



2-3随产品改


Product details

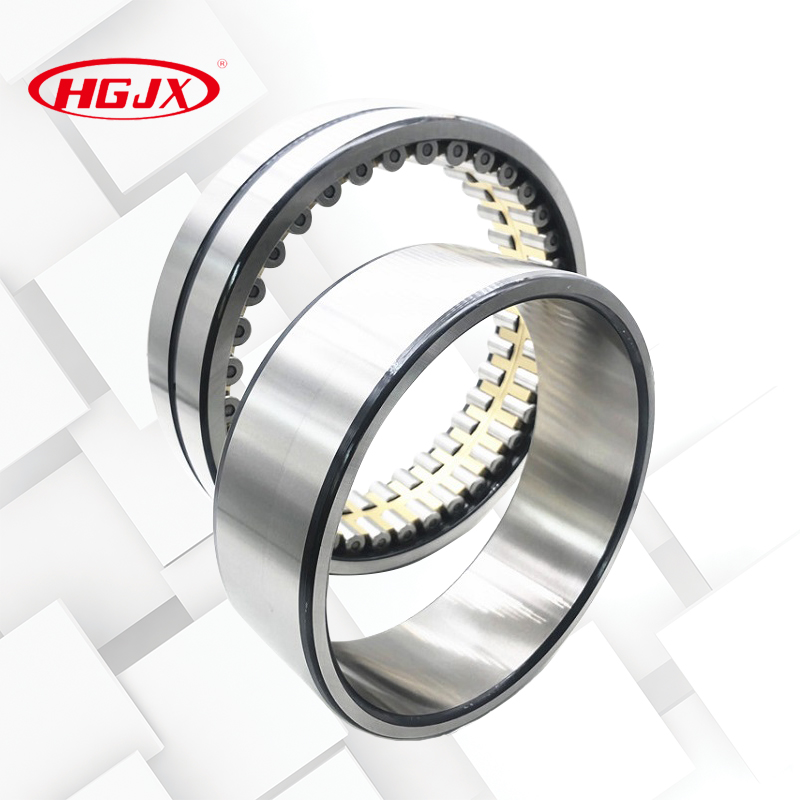

Cylindrical roller bearings, also known as rolling mill bearings, belong to separable bearings.

It is easy for people to install and dismantle. They can be classified into single row, double row and four rows cylindrical roller bearings.

The single row cylindrical roller bearings are the most widely used ones.

 And the single row cylindrical roller bearings can be divided into N series, NU series, NF series, NUP series and so on.

Cylindrical roller bearings carry a very heavy radial load.


N type:

The inner ring has two integral flanges and the outer ring is without flanges.

Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself.

The bearings are therefore used as non-locating bearings.



NU type:

The outer ring of bearings of the NU design has two integral flanges and the inner ring is without flanges.

Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself.



NJ type:

The outer ring has two integral flanges and the inner ring one integral flange.

The bearings are therefore suitable for the axial location of a shaft in one direction.



NF type:

The outer ring has one integral flange and the inner ring two integral flanges.



NUP type:

The outer ring has two integral flanges and the inner ring one integral flange and one non-integral flange in the form of a loose flange ring.

The bearings can be used as locating bearings, i.e. they can provide axial location for a shaft in both directions.



RN type:

No outer ring and the inner ring two integral flanges.



NN type:

NN type bearing without ribs on outer ring,there is a wall in the midel of between both sides of inner ring.

It can make shaft relative bearing between the axial displacement generated in both directions.



Durable cylindrical roller bearing Related Models:


model dimensions(mm) weight(kg)
d D B
NU222 110 200 38 4.8
NU2220 100 180 46 4.75
NU2222 110 200 53 6.7
NU2224 120 215 58 8.3
NU2226 130 230 64 10.5
NU2228 140 250 68 15
NU2230 150 270 73 18.5
NU2232 160 290 80 24.2
NU2234 170 310 86 30
NU2236 180 320 86 31.5
NU2238 190 340 92 39
NU224 120 215 40 5.75
NU2240 200 360 98 46
NU2244 220 400 108 62.5
NU2248 240 440 120 84
NU2252 260 480 130 110
NU2256 280 500 130 115
NU226 130 230 40 6.45
NU2260 300 540 140 145
NU2264
320 580 150 180If



If you have any problems about the durable cylindrical roller bearing


NNU41   800 W33 44827 800K



Whatsapp/Skype/WeChat: , please contact us!

0086   13220586233


E-mail:

alexandra@sdhgbearing.com
