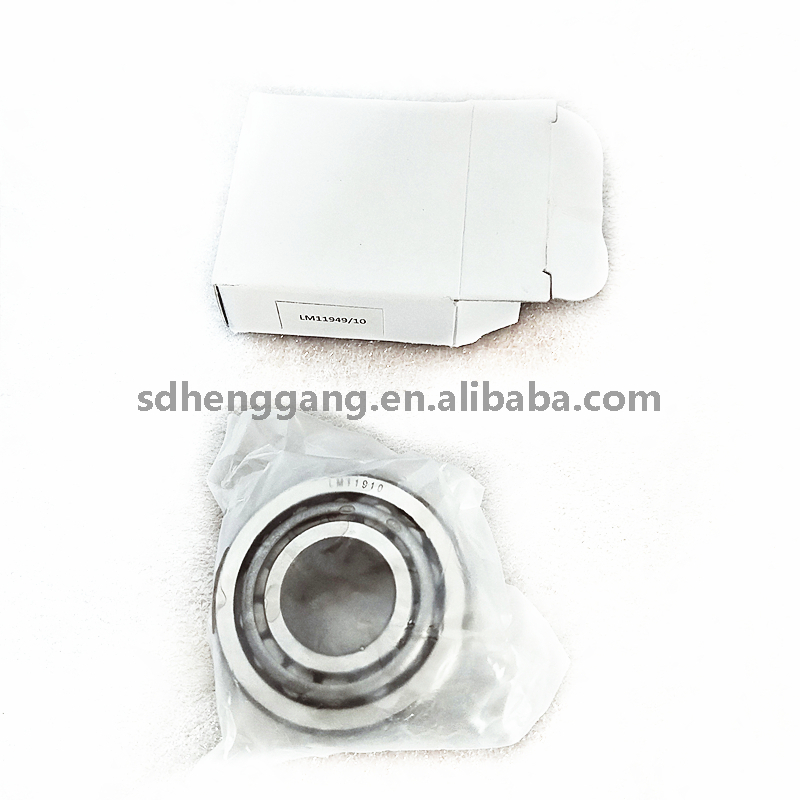

inch tapered roller bearing LM11949/LM11910

Waterproof system. Corrosion resistance. Vacuum sleeves
Material:
Stock:
Whatsapp:
email:
Availability:
Quantity:
  • LM11949/LM11910

  • HGJX or customization

 Why us?


1. FREE SAMPLES:contact us by email or trade manager, we will send the free sampls according to your request.

2. World Class Bearing:We provide our customers with all types of indigenous bearing with world class quality.

3. OEM or Non Stand Bearings: Any requirements for Non standard bearings is Easily Fulfilled by us due to its vast knowledge and links in the industry.

4. Genuine products With Excellent Quality: Company has always proved the 100% quality products it provides

    with genuine intent.

5. After Sales Service and technical Assistance: Company provides after sales service and technical assistance as per

    the customers requirement and needs.

6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.

7. Cost Saving: We provide long-life,  shock-resistant and high reliability bearings with excellent quality and better performance. Resulting in increased cost saving.

8. Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well.

   Customers are always given quick support.



Product details


Tapered roller bearings are separable and have the following components: outer ring, inner ring, and roller assembly (containing the rollers and a cage).

The non-separable inner ring and roller assembly is called the cone, and the outer ring is called the cup.

Internal clearance is established during mounting by the axial position of the cone relative to the cup.

Metric tapered roller bearings follow the designation system defined by ISO 355.



Application:

Wildly used in skateboards, roller skates, high-speed motors, wind power generation precision instrumentation industry, agriculture, engineering, and textile industries.



Prefix:

EH: extra heavy

HH: heavier than heavy

HM: heavy medium

LM: light medium

LL: lighter than light

EL: extra light

J: metric designed

L: light

M: medium

H: heavy




inch tapered roller bearing LM11949/LM11910

Related Models



model
dimensions(mm) weight(kg)
inner outer d D B
29688 29620 73.817 112.712 25.4 0.86
568 563 73.817 127 36.512 1.78
577 572 74.612 139.992 36.512 2.41
658 652 74.612 152.4 41.275 3.42
34294 34500 74.976 127 26.988 1.19
42686 42624 74.987 129.975 33.249 1.66
JLM714149 JLM714110 75 115 25 0.88
JM714249 JM714210 75 120 31 1.27
JM714249A JM714210 75 120 31 1.23
JH415647 JH415610 75 145 51 3.81
HM215249 HM215210 75.987 131.975 39 2.11
LL714649 LL714610 76.2 105.57 13.495 0.32
L814749 L814710 76.2 109.538 19.05 0.58
34300 34478 76.2 121.442 24.608 0.95
34301 34478 76.2 121.442 24.608 0.94
27684 27620 76.2 125.412 25.4 1.22
27684A 27620 76.2 125.412 25.4 1.23
34301 34500 76.2 127 26.988 1.16
34300 34500 76.2 127 26.988 1.17
42687 42620 76.2 127 30.162 1.42
42688 42620 76.2 127 30.162 1.39
495A 492A 76.2 133.35 30.162 1.68
47679 47620 76.2 133.35 33.338 1.92
47680 47620 76.2 133.35 33.338 1.92
47678 47620 76.2 133.35 33.338 1.88
47679 47620A 76.2 133.35 79.375 1.92
HM516442 HM516410 76.2 133.35 39.688 2.4
5760 5735 76.2 135.733 44.45 2.68
495A 493 76.2 136.525 30.162 1.8
495AX 493 76.2 136.525 30.162 1.77
H715346 H715310 76.2 136.525 46.038 2.92
575 572X 76.2 139.7 36.512 2.34
H715346 H715310 76.2 139.7 46.038 3.1
575 572 76.2 139.992 36.512 2.35
47679 47621 76.2 139.992 36.512 2.33
47680 47621 76.2 139.992 36.512 2.33
575-S 572 76.2 139.992 36.512 2.32
HM515745 HM515716 76.2 142.138 44.45 2.9
659 653 76.2 146.05 41.275 3.01
6461 6420 76.2 149.225 53.975 4.24
6466 6420 76.2 149.225 53.975 4.22
6461A 6420 76.2 149.225 53.975 4.16
590A JM719113 76.2 150 35.966 2.92
748-S 742 76.2 150.089 44.45 3.66
590A 592A 76.2 152.4 39.688 3.21



If you have any problems about the inch tapered roller bearing LM11949/LM11910, please feel free to contact us!
