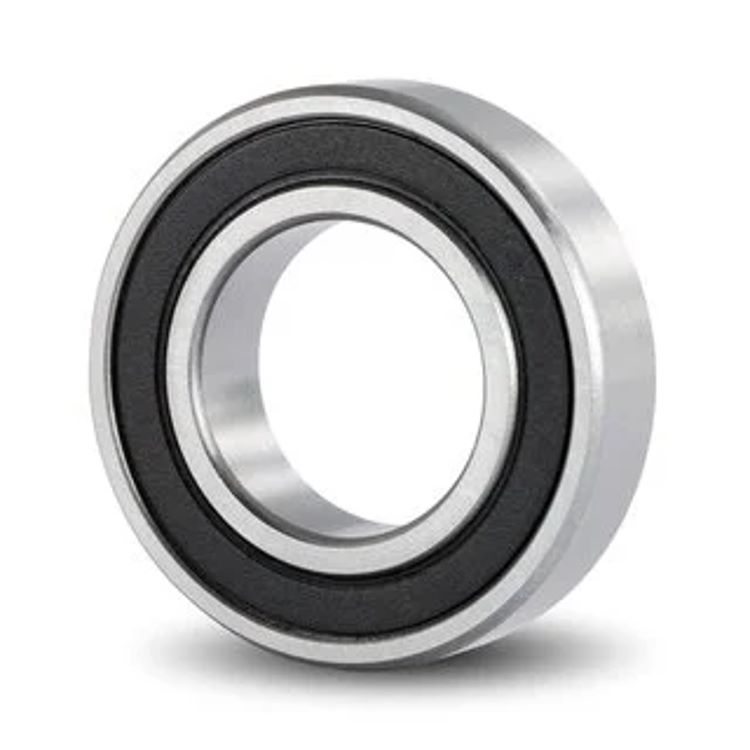

Single Row Ball Bearing China Factory 61930 61930 2RS 6930LLU Thin Cross Section Ball Bearing Deep Groove Balll Bearing Size150x210x28mm
| Product Name | Thin Cross Section Ball Bearing61930 2RS 6930 RS |
| Size | 150x210x28mm |
| Row of Balls | Single row |
| Brand | HGJX or Customized |
| Weight | 3.05kg |
| Type | Deep groove ball bearing |
| Feature | high speed, long life, high precision, low noise |
| Material | Bearing steel,GCR15 |
| Application | Reducer, machine tool, power plant, steel mill, ship |
We also supply other model:
| Boundary dimensions | Basic load ratings (kN) | Limiting speed | Mass | ||||||
| BearingNO. | mm | Dynamic | Static | rpm | Kg | ||||
| d | D | B | rs min | Cr | Cor | Grease | Oil | ≈ | |
| 6900-2RS | 10 | 22 | 6 | 0.3 | 2.7 | 1.25 | 30000 | 36000 | 0.010 |
| 6901-2RS | 12 | 24 | 6 | 0.3 | 2.9 | 1.45 | 27000 | 32000 | 0.011 |
| 6902-2RS | 15 | 28 | 7 | 0.3 | 4.3 | 2.25 | 24000 | 28000 | 0.017 |
| 6903-2RS | 17 | 30 | 7 | 0.3 | 4.6 | 2.55 | 22000 | 26000 | 0.018 |
| 6904-2RS | 20 | 37 | 9 | 0.3 | 6.35 | 3.7 | 19000 | 23000 | 0.036 |
| 6905-2RS | 25 | 42 | 9 | 0.3 | 7 | 4.55 | 16000 | 19000 | 0.041 |
| 6906-2RS | 30 | 47 | 9 | 0.3 | 7.25 | 5 | 14000 | 17000 | 0.045 |
| 6907-2RS | 35 | 55 | 10 | 0.6 | 10.9 | 7.75 | 12000 | 15000 | 0.073 |
| 6908-2RS | 40 | 62 | 12 | 0.6 | 13.7 | 9.95 | 11000 | 13000 | 0.112 |
| 6909-2RS | 45 | 68 | 12 | 0.6 | 14.1 | 10.9 | 9800 | 12000 | 0.132 |
| 6910-2RS | 50 | 72 | 12 | 0.6 | 14.5 | 11.7 | 8900 | 11000 | 0.133 |
| 6911-2RS | 55 | 80 | 13 | 1 | 16.6 | 14.1 | 8200 | 9600 | 0.185 |
| 6912-2RS | 60 | 85 | 13 | 1 | 20.2 | 17.3 | 7600 | 8900 | 0.193 |
| 6913-2RS | 65 | 90 | 13 | 1 | 17.4 | 16.1 | 7000 | 8200 | 0.211 |
| 6914-2RS | 70 | 100 | 16 | 1 | 23.7 | 21.2 | 6500 | 7700 | 0.342 |
| 6915-2RS | 75 | 105 | 16 | 1 | 24.4 | 22.6 | 6100 | 7200 | 0.363 |
| 6916-2RS | 80 | 110 | 16 | 1 | 25 | 24 | 5700 | 6700 | 0.382 |
| 6917-2RS | 85 | 120 | 18 | 1.1 | 31.9 | 29.6 | 5400 | 6300 | 0.535 |
| 6918-2RS | 90 | 125 | 18 | 1.1 | 32.8 | 31.6 | 5100 | 6000 | 0.565 |
| 6919-2RS | 95 | 130 | 18 | 1.1 | 33.7 | 33.5 | 4800 | 5700 | 0.579 |
| 6920-2RS | 100 | 140 | 20 | 1.1 | 45 | 41.9 | 4500 | 5300 | 0.785 |
| 6921-2RS | 105 | 145 | 20 | 1.1 | 46.5 | 44.8 | 4300 | 5100 | 0.816 |
| 6922-2RS | 110 | 150 | 20 | 1.1 | 47.9 | 47.8 | 4100 | 4800 | 0.849 |
| 6924-2RS | 120 | 165 | 22 | 1.1 | 57.2 | 56.9 | 3800 | 4400 | 1.150 |
| 6926-2RS | 130 | 180 | 24 | 1.5 | 69.6 | 70 | 3500 | 4100 | 1.520 |
| 6928-2RS | 140 | 190 | 24 | 1.5 | 71.3 | 74.8 | 3200 | 3800 | 1.620 |
| 6930-2RS | 150 | 210 | 28 | 2 | 93.4 | 94.3 | 3000 | 3500 | 2.470 |
| 6932-2RS | 160 | 220 | 28 | 2 | 87 | 96 | 2800 | 3300 | 2.610 |
| 6934-2RS | 170 | 230 | 28 | 2 | 86 | 95.5 | 2600 | 3100 | 2.740 |
| 6936-2RS | 180 | 250 | 33 | 2 | 110 | 119 | 2400 | 2900 | 4.760 |
| 6938-2RS | 190 | 260 | 33 | 2 | 113 | 127 | 2300 | 2700 | 4.980 |
| 6940-2RS | 200 | 280 | 38 | 2.1 | 157 | 168 | 2200 | 2600 | |
Advantage of our company:
1. More than 20 years industry experience
2. Our own brand HGJX
3. Accept OEM, customization, customers’ logo
4. 7/24 hours calling service
5. Reply your inquiry within 12 hours
6. Professional technical support
7. Good ability of cost control brings you reasonable price, long-term partner of forwarder brings you low freight
8. Special discount and protection of sales area provide to our distributors
Packing and delivery
* Industrial pakage+outer carton+pallets
* sigle box+outer carton+pallets
* Tube package+middle box+outer carton+pallets
* According to your requirments
If you are interested in the Deep groove ball bearing 61930 6930 2RS'' CLICK '' here to contact us!!!
