16017ZZ 2RS Open
HGJX or customization

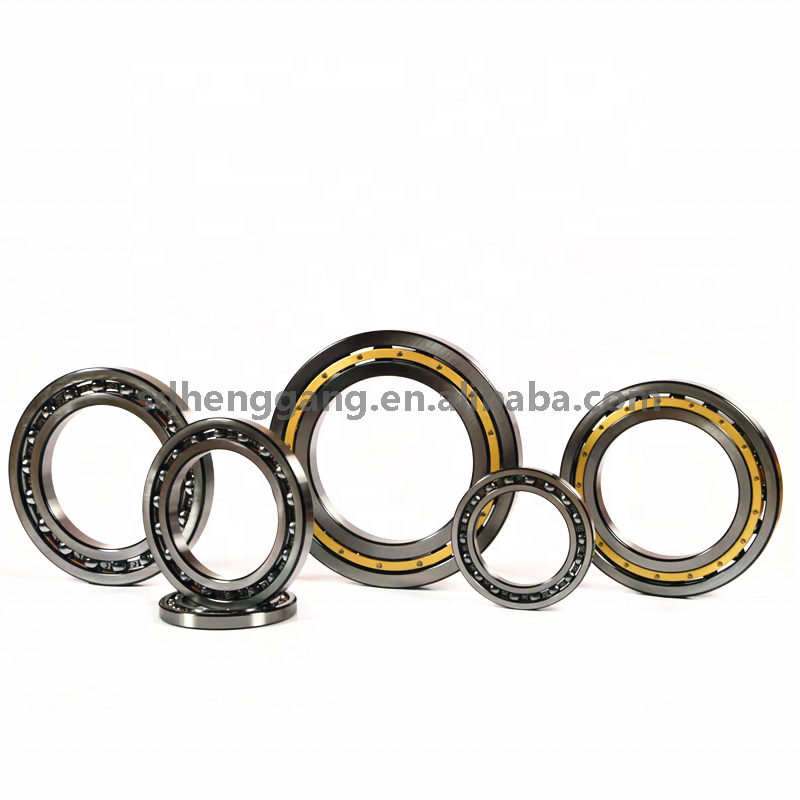

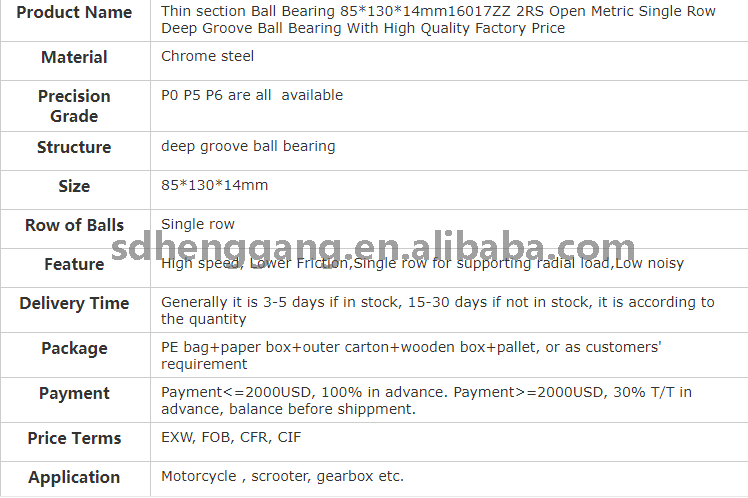

Thin section Ball Bearing85*130*14mm16017ZZ 2RS Open Metric Single Row Deep Groove Ball Bearing With High Quality Factory Price
Single row deep groove ball bearings are the most representative structures in rolling bearings and are widely used. In addition to bearing radial loads, it can withstand axial loads in both directions.
The friction torque is small, and it is most suitable for applications requiring high speed rotation,
low noise and low vibration. In addition to the open type, this type of bearing has a bearing with a steel plate dust cover, a bearing with a rubber seal ring, or a bearing with a snap ring on the outer diameter of the outer ring.
Steel stamping cages are generally used. Deep groove ball bearings, large size bearings use copper alloy cages.
For high-speed rotation, a cage is also used.
Feature
* thin section bearing with a thin, square cross section
* suitable for space-saving installation in radial and axial directions
* suitable for high speeds compared to deep groove ball bearings with a larger cross section
* extra light series with compact dimensions and low weight
* suitable for radial loads and light axial loads in both directions
* offers high running accuracy, quiet running and very high speeds
* seal: contact lip seal on both sides made of rubber (2RS) for high sealing effect
* If you need this bearing in RS design with only one seal and one open side, you can simply remove one of the two seals: to the instructions
* good fixed bearing property, but can also be used as a floating bearing, each in both directions
We also supply:
Part NO. | Boundary dimension(mm) | Basic load ratings (lbf) | Weight(Ib) | Limiting speed (min-1) | ||||
d | D | B | Dynamic(Cr) | Static(Cor) | KG | Grease | Oil | |
6220 | 100 | 180 | 34 | 122 | 92.8 | 3.19 | 3400 | 4300 |
6221 | 105 | 190 | 36 | 133 | 105 | 3.78 | 3200 | 4000 |
6222 | 110 | 200 | 38 | 144 | 117 | 4.42 | 3000 | 3800 |
6224 | 120 | 215 | 40 | 155 | 131 | 5.3 | 2600 | 3400 |
6226 | 130 | 230 | 40 | 165 | 148 | 6.12 | 2400 | 3200 |
6228 | 140 | 250 | 42 | 179 | 167 | 7.77 | 2000 | 2800 |
6230 | 150 | 270 | 45 | 203 | 199 | 9.78 | 1900 | 2600 |
6232 | 160 | 290 | 48 | 215 | 218 | 12.22 | 1800 | 2400 |
6234 | 170 | 310 | 52 | 245 | 260 | 15.241 | 1700 | 2200 |
6236 | 180 | 320 | 52 | 262 | 285 | 15.518 | 1600 | 2000 |
6238 | 190 | 340 | 55 | 285 | 322 | 18.691 | 1500 | 1900 |
6240 | 200 | 360 | 58 | 288 | 332 | 22.577 | 1400 | 1800 |
6244 | 220 | 400 | 65 | 355 | 365 | 36.5 | 1200 | 1600 |
6248 | 240 | 440 | 72 | 358 | 467 | 53.9 | 1000 | 1400 |
6300 | 10 | 35 | 11 | 8.2 | 3.5 | 0.053 | 18000 | 24000 |
6301 | 12 | 37 | 12 | 9.7 | 4.2 | 0.06 | 17000 | 22000 |
6302 | 15 | 42 | 13 | 11.4 | 5.45 | 0.082 | 16000 | 20000 |
6303 | 17 | 47 | 14 | 13.5 | 6.55 | 0.115 | 15000 | 19000 |
6304 | 20 | 52 | 15 | 15.9 | 7.9 | 0.144 | 14000 | 17000 |
6305 | 25 | 62 | 17 | 17.22 | 11.39 | 0.2193 | 10000 | 13000 |
6306 | 30 | 72 | 19 | 20.77 | 14.17 | 0.3498 | 8000 | 10000 |
6307 | 35 | 80 | 21 | 25.66 | 17.92 | 0.4542 | 6800 | 8000 |
6308 | 40 | 90 | 23 | 31.35 | 22.88 | 0.6394 | 5800 | 7200 |
6309 | 45 | 100 | 25 | 40.66 | 30.00 | 0.8363 | 5000 | 6200 |
6310 | 50 | 110 | 27 | 47.58 | 35.71 | 1.0822 | 4400 | 5500 |
6311 | 55 | 120 | 29 | 71.5 | 44.50 | 1.37 | 5600 | 6700 |
6312 | 60 | 130 | 31 | 82 | 52.00 | 1.72 | 5300 | 6300 |
6313 | 65 | 140 | 33 | 92.5 | 60.00 | 2.11 | 4800 | 6000 |
6314 | 70 | 150 | 35 | 104 | 68.00 | 2.57 | 4500 | 5300 |
6315 | 75 | 160 | 37 | 113 | 77.00 | 3.08 | 4300 | 5000 |
6316 | 80 | 170 | 39 | 122 | 87 | 3.64 | 3800 | 4800 |
6317 | 85 | 180 | 41 | 132 | 97 | 4.33 | 3600 | 4500 |
6318 | 90 | 190 | 43 | 145 | 108 | 4.97 | 3400 | 4300 |
6319 | 95 | 200 | 45 | 155 | 122 | 5.65 | 3200 | 4000 |
6320 | 100 | 215 | 47 | 173 | 141 | 7.01 | 3000 | 3600 |
6322 | 110 | 240 | 50 | 205 | 180 | 9.49 | 2700 | 3200 |
FAQ
1.What is the minimum order quantity for this product?
Can be negotiated, we will try our best to meet customer needs.Our company is mainly based on wholesale sales,most customers'orders are more than 1 ton.
2.What is your latest delivery time?
Most orders will be shipped within 7-15 days of payment being received.
3.Does your company have quality assurance?
Yes, for 1 years.
4.What is the competitiveness of your company's products compared to other companies?
High precision, high speed, low noise.
5.What are the advantages of your company's services compared to other companies?
Answer questions online 24 hours a day, reply in a timely manner, and provide various documents
required by customers for customs clearance or sales. 100% after-sales service.
6.Which payment method does your company support?
Do our best to meet customer needs, negotiable.
7.How to contact us quickly?
Please send us an inquiry or message and leave your other contact information, such as phone number,
whats app account+86 15105314265 or wechat account, we will contact you as soon as possible and provide
the detailed information you need.
If you are interested in the long life deep groove ball bearing 61856 61860 61864 61868 zz 2rs , please CLICK the E-mail below or add the whatsapp/skype/wechat to contact us!
Whatsapp/Skype/WeChat: 0086 15105314265
E-mail: tinggeng@sdhgbearing.com
