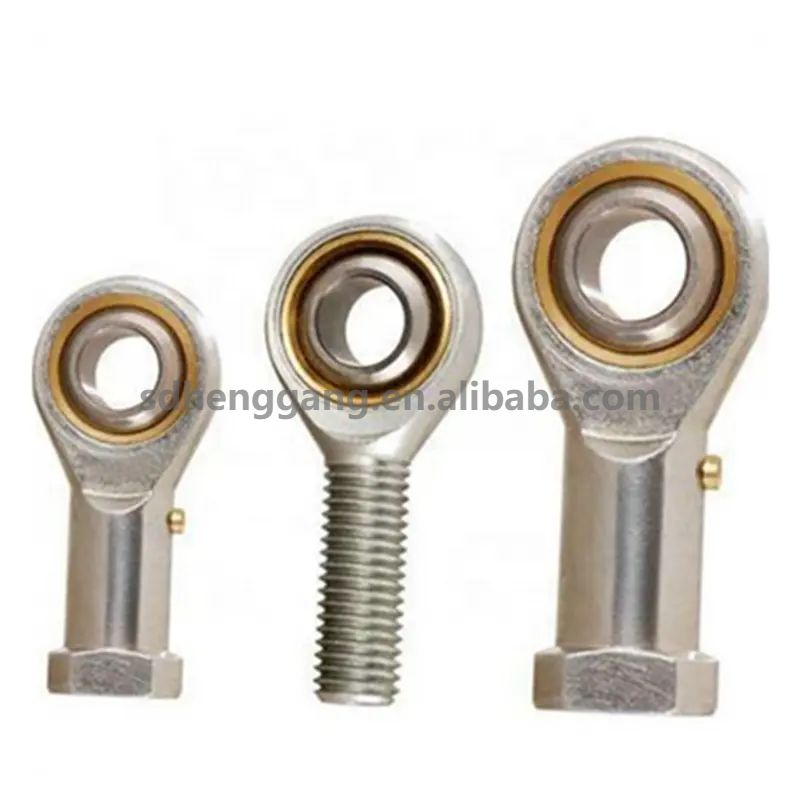

Self-lubricating Rod End Bearings SA20TK SA25TK SA30TK Female Thread Fisheye Ball Joint Bearing for Transmission Parts
You are here: Home » Products » Joint bearing » Self-lubricating Rod End Bearings SA20TK SA25TK SA30TK Female Thread Fisheye Ball Joint Bearing for Transmission Parts

Product Detail

loading

Share to:
sharethis sharing button

Self-lubricating Rod End Bearings SA20TK SA25TK SA30TK Female Thread Fisheye Ball Joint Bearing for Transmission Parts

Joint bearings are spherical sliding bearings. The basic type is composed of inner and outer rings with spherical sliding spherical contact surfaces. . The joint bearing is mainly composed of an inner ring with an outer spherical surface and an outer ring with an inner spherical surface, which can withstand larger loads. According to its different types and structures, it can bear radial load, axial load or a combined load of both radial and axial.
Type:
Material:
Stock:
Whatsapp:
Application:
Bore Diameter:
Package:
Availability:
Quantity:
  • SA20TK SA25TK SA30TK

  • HGJX or customization

 Why us?

1. FREE SAMPLES:contact us by email or trade manager, we will send the free sampls according to your request.

2. World Class Bearing:We provide our customers with all types of indigenous bearing with world class quality.

3. OEM or Non Stand Bearings: Any requirements for Non standard bearings is Easily Fulfilled by us due to its vast knowledge and links in the industry.

4. Genuine products With Excellent Quality: Company has always proved the 100% quality products it provides

    with genuine intent.

5. After Sales Service and technical Assistance: Company provides after sales service and technical assistance as per

    the customers requirement and needs.

6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.

7. Cost Saving: We provide long-life,  shock-resistant and high reliability bearings with excellent quality and better performance. Resulting in increased cost saving.

8. Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well.

   Customers are always given quick support.

Self-lubricating Rod End Bearings SA20TK SA25TK SA30TK Female Thread Fisheye Ball Joint Bearing for Transmission Parts

GEH series

SAXXTK(2)SAXXTK(6)

Model Number
Self-lubricating Rod End Bearings SA20TK SA25TK SA30TK Female Thread Fisheye Ball Joint Bearing for Transmission Parts
Ball Size
Chrome Steel
Color
C0 C2 C3 C4
Structure
Rod End Joint Bearing
       Feature
Self-lubricating
Delivery Time
Generally it is 3-5 days if in stock, 15-30 days if not in stock, it is according to the quantity
Package
PE bag+paper box+outer carton+wooden box+pallet, or as customers' requirement
Out Ring
Copper alloy
In Stock
5000pcs



Application
Engineering Hydraulic Cylinder, Forging Machine, Construction Machinery, Automation Equipment, Automobile Shock Absorber, Water Conservancy Machinery

Product details

Spherical joint bearings are divided into GE, GEC, GEG, GEEW, GEK, GEH and other types, with different sizes and lubrication methods. . To select a certain type of bearing, to determine the required bearing size, the main factors that must be considered are the load, the load capacity of the bearing and the expected service life. This is also true when selecting rod ends.

1.Classification and characteristics
1)Models:GE..E,GE..ES,GE..ES-2RS
2)Excellent load rating capacity
3)High quality,good service

2.Specification
1)Inner Race:Gcr15 Steel,hardness HRC 58-64,surface phosphated.
2)Outer Race:Gcr15 Steel,hardeness HRC 54-60,surface phosphated.
3)Bore size bigger than 140mm:Inner and outer race are all Gcr15 SiMn.
4)Sliding contact surfaces:Steel/Steel or Steel/PTFE

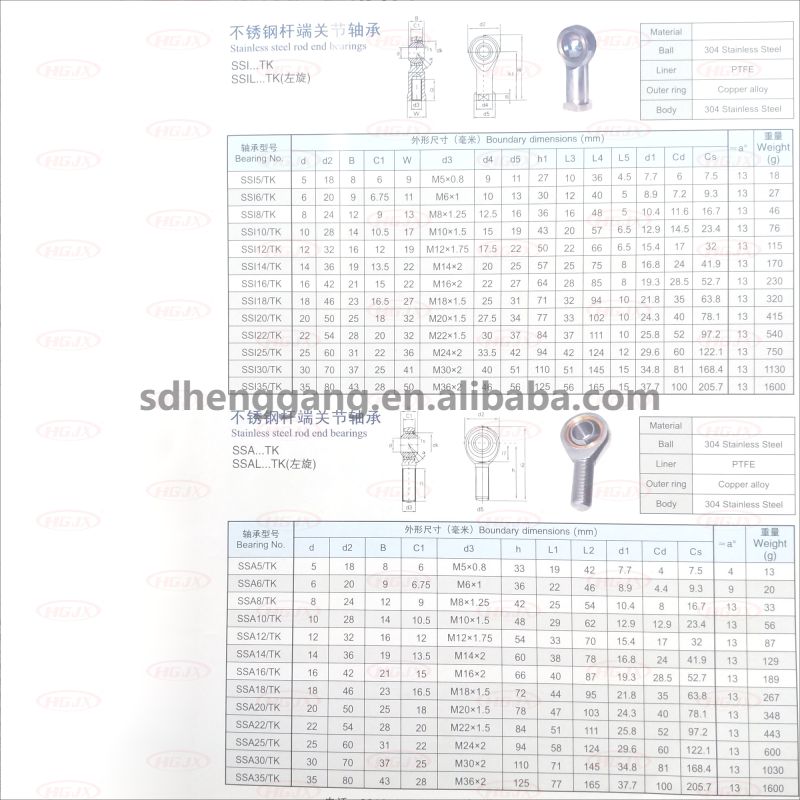

rod end joint ball bearing(1)
